In Stock

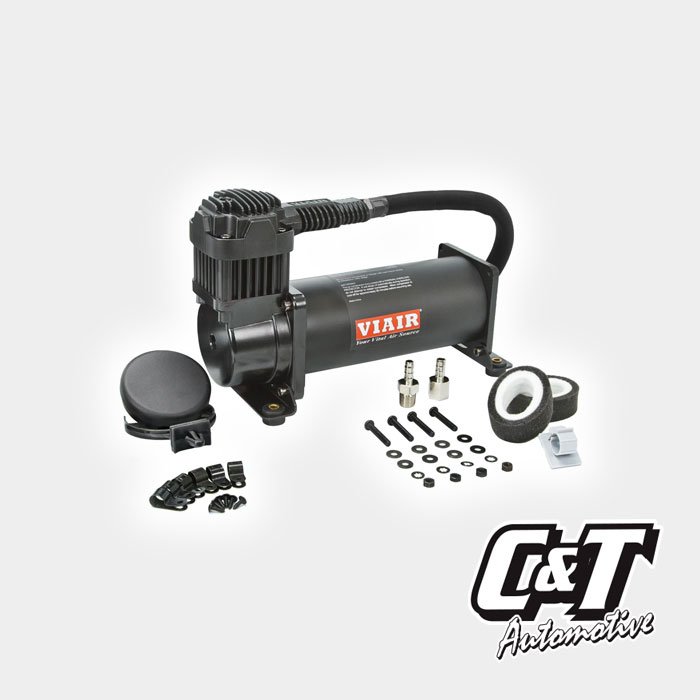

What's Included?
- 1x — 444C Compressor Unit
- 1x — Check Valve
- 4x — Vibration Isolators
- 1x — Stainless Steel Braided Leader Hose
- 1x — Air Line for Remote Mount Air Filter
- 1x — Remote Mount Air Filter Assembly
- 2x — Replacement Air Filter Elements
All mounting hardware & installation instructions are included.
Please Note: For correct installation, the use of thread sealant is required. Plumbers tape is not recommended.
Faulty parts? You’re Covered!
All of the products we sell come with 12 months manufacturers warranty for complete peace of mind. If it’s not right, we’ll replace it.
What’s in our air suspension kits?
Trevor takes you through all the parts included in a C&T Automotive Air Suspension Kit as they install one on a customers FG Falcon.
Specifications
Maximum Working Pressure | 200 PSI |
Duty Cycle | 100% @ 100 PSI 50% @ 200 PSI |
Air Flow | 1.76 CFM @ 0 PSI 0.42 CFM @ 200 PSI |
Voltage | 12V |
2.5 Gallon Air Tank Fill Rate | 0 to 200 PSI - 4 min. 50 sec. (± 10 sec.) 165 to 200 PSI - 1 min. 32 sec. (± 10 sec.) |
5 Gallon Air Tank Fill Rate | 0 to 200 PSI - 10 min. 30 sec. (± 15 sec.) 165 to 200 PSI - 2 min. 50 sec. (± 05 sec.) |
Maximum Air Tank Size | 5 Gallon |
Relay Included | No |
Pressure Switch Included | No |
Dimensions | Length: 276 MM Width: 107 MM Height: 179 MM |
Weight | 5 KG |
